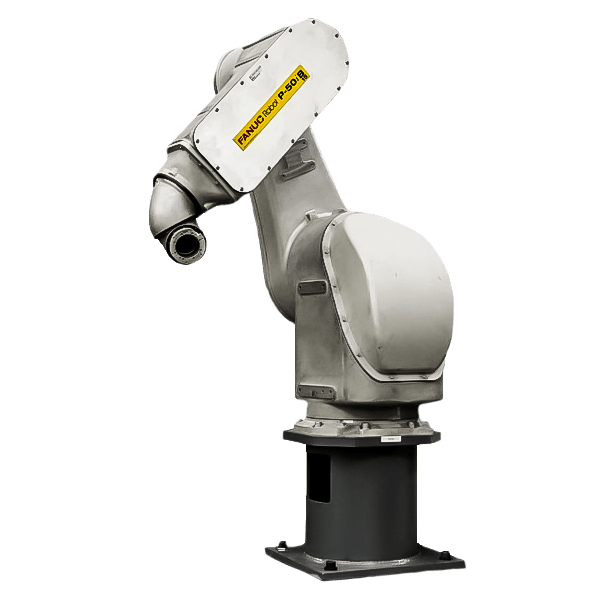

The solution for reliable and precise painting and coating operations is the FANUC P-50iB/15. It is a very affordable robot that can still achieve top product quality for a wide range of industries including interior and exterior of car bodies, automotive parts, plastics, wood, steel, anti-corrosion, and much more. The FANUC P50iB/15 has a lightweight arm made of aluminum that needs less power, to help increase your power savings. Additionally, the P50iB/15 includes enhanced security, easy cleaning, and a smooth surface for decreased contamination chances.
The P-50iB/15 includes comprehensive paint software that will help ease the job of replacing manual spray. Additionally, the inner diameter of 68 mm from J4 to J6 arm was designed to help eliminate contamination of debris falling from exposed paint hoses.
The P-50iB/15 is paired with the intelligent R-30iB controller.
For more information, contact a RobotWorx representative today at 740-251-4312
| PRODUCT NAME | FANUC P-50iB/15 |
| PRODUCT CODE | |
| CATEGORY |
Specification
| Axes | 6 |
| H-Reach | 1400mm |
| Payload | 15kg |
| Mounting | Floor, Inverted, Angle |
| Structure | Articulated |
| Robot Mass | 323kg |
| Repeatability | ±0.2mm |
Motion Range
| J1 | ±320° |
| J2 | ±240° |
| J3 | ±404° |
| J4 | ±1080° |
| J5 | ±1080° |
| J6 | ±1080° |
Motion Speed
| J1 | 1080 °/s (18.85 rad/s) |
| J2 | 140 °/s (2.44 rad/s) |
| J3 | 140 °/s (2.44 rad/s) |
| J4 | 160 °/s (2.79 rad/s) |
| J5 | 375 °/s (6.54 rad/s) |
| J6 | 545 °/s (9.51 rad/s) |
