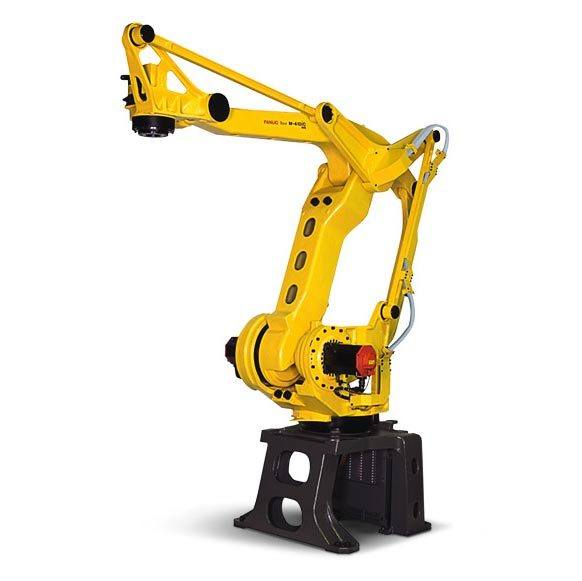

The FANUC M-410iC/315 is the advanced FANUC palletizing robot with a high payload of 315kg! Between the payload capability and the high vertical reach of the robot, the M-410iC/315 allows a great deal of palletizing versatility for customers, with the ability to stack pallets to a height of 2 meters.
With a hollow wrist and internally routed cables, the M410iC/315 is a great option for manufacturers who want to cut down on wear and tear, while also having easy access maintenance for their robot cabling.
This M410iC/315 comes with the easy-to-use R-30iB controller and a 3143mm reach. If you are looking for high speed palletizing for large objects, the FANUC M 410iC/315 R-30iB robot is just what you need.
For more information, contact a RobotWorx representative today at 740-251-4312
| PRODUCT NAME | FANUC M-410iC/315 |
| PRODUCT CODE | |
| CATEGORY |
Specification
| Axes | 4 |

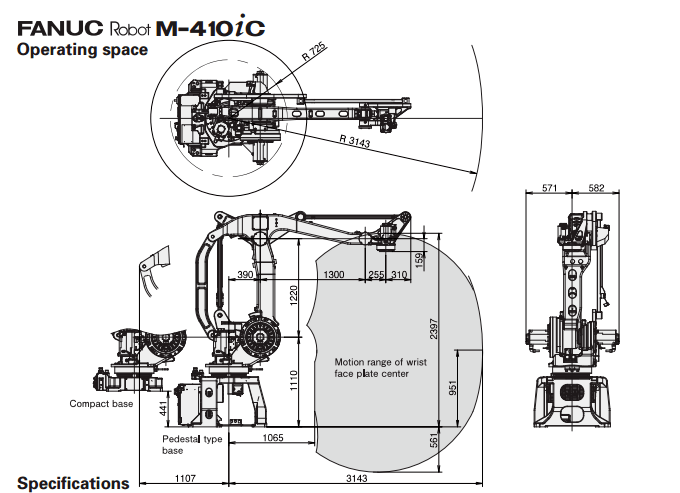

| H-Reach | 3143mm |
| Payload | 315kg |
| Mounting | Floor |
| Structure | Articulated |
| Robot Mass | 1600kg |
| Repeatability | ±0.5mm |
Motion Range
| J1 | ±360° |
| J2 | ±144° |
| J3 | ±136° |
| J4 | ±720° |
Motion Speed
| J1 | 90 °/s (1.57 rad/s) |
| J2 | 100 °/s (1.75 rad/s) |
| J3 | 110 °/s (1.92 rad/s) |
| J4 | 195 °/s (3.4 rad/s) |
