The FANUC M-410iB/160 is one of the latest-generation palletizing robots engineered to produce high-quality work with its precision, high-speed, and high-payload offerings robot. It features a 160kg payload and delivers high-speed performance, with one of the fastest cycle times and payloads in its class. There are various software options available with the FANUC M-410iB/160 such as Collision Guard, Pallet Tool, Pallet PRO, web-based software for remote connectivity, machine vision (iRVision-2D or 3D), and iPendant.
RobotWorx provides new and used FANUC M410iB/160s; both will offer an average of 20 cycles per minute for case palletizing and 27 per minute for bag palletizing. The used M410iB/160 comes at a reduced price and with the RobotWorx Value Package.
Whether new or used, the M-410iB/160 can operate in harsh or traditional environments and it gives the user more floor space as it has a small footprint and integrated controller. The new and used M410iB/160 can be paired with the R-30iA, RJ3iB, or R-30iB controller.
For more information, contact a RobotWorx representative today at 740-251-4312
| PRODUCT NAME | FANUC M-410iB/160 |
| PRODUCT CODE | |
| CATEGORY |
Specification
| Axes | 4 |
| H-Reach | 3140mm |
| Payload | 160kg |
| Mounting | Floor |
| Structure | Articulated |
| Robot Mass | 1940kg |
| Repeatability | ±0.5mm |

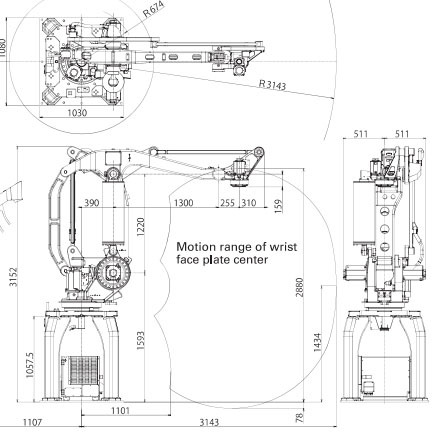

Motion Range
| J1 | ±360° |
| J2 | ±144° |
| J3 | ±136° |
| J4 | ±540° |
Motion Speed
| J1 | 130 °/s (2.27 rad/s) |
| J2 | 130 °/s (2.27 rad/s) |
| J3 | 135 °/s (2.36 rad/s) |
| J4 | 300 °/s (5.24 rad/s) |
